$279.00
Availability: In stock.
Ships same day, or next business day.
-
Never worry about power again.
Strymon Zuma is the quietest and most powerful pedal power supply of its kind, capable of powering a huge number of guitar pedals silently and reliably with a staggering 500mA of current available at each output. With nine high-current, individually isolated, ultra-low-noise outputs – each with its own dedicated regulator and custom transformer – Zuma is the most advanced isolated pedal power supply available today.
A pedalboard can be a noisy place, and your choice of power supply can have a huge effect on the noise level and transparency of your guitar tone. We designed Zuma to address the main pain points guitarists face with dual-stage topology, pre-regulated outputs, optically isolated feedback and advanced multi-stage filtering – so you can rest easy at the gig, knowing that your pedals and rig will sound the absolute best that it can.
Dual isolation.
Zuma’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.
World tour ready.
With automatic international power compatibility built-in, Zuma delivers an abundance of clean, rock-steady power to all your pedals, on any stage anywhere you play in the world.
Features
Expandable System
Ultra Low Noise
World Tour Ready
12V & 18V Options
Dual Isolation
Energy Efficient
Expandable System
Never run out of outputs.
Have a growing rig? Or unique requirements that require distributed power?
Add more outputs to your Zuma by connecting a Strymon Ojai or Ojai R30 (sold separately) with the 24V Out jack.
Use Zuma by itself if that’s all you need, or as part of a truly expandable, modular power distribution system that can grow with your pedalboard.
Ultra Low Noise
Hear your pedals, not your power.
Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.
Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.
World Tour Ready
Playing gigs all around the world? No need to purchase separate power supplies for your international tour.
Zuma has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you’re on 120V, 240V, 100V, or any variation in between, Zuma will deliver clean, reliable power to your pedals, even if the venue has dirty power.
12V & 18V Options
Do you have pedals that require 12V or 18V? Zuma has you covered. Two channels have selectable 9, 12, or 18V output voltages.
Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!
Dual Isolation
Zuma’s all analog circuitry offers two stages of isolation.
Each of the nine output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.
Zuma also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

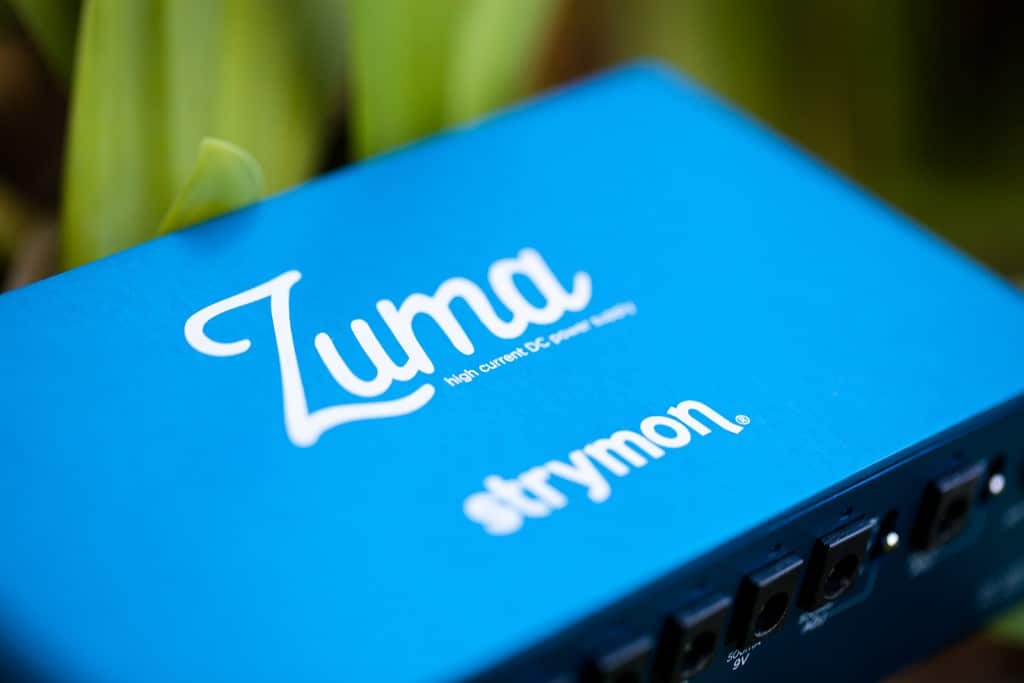

Energy Efficient
Don’t let the blue chassis fool you: Zuma is green at heart. Significantly more efficient than linear power supplies, Zuma is able to deliver substantially more current while handling a much wider range of input voltages. Zuma’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.
Ins & Outs
Front Panel
- LED illuminates when pedal is connected.
- Plug your pedals in here. Outputs 1 through 7 provide 500mA at 9VDC.
- Plug your pedals in here. Outputs 8 and 9 offer a selection of 9V, 12V, or 18V, providing 500mA, 375mA, or 250mA respectively.
- Connect a Strymon Ojai or Ojai R30 (sold separately) to the 24V OUT jack and gain additional outputs for your pedals.
Rear Panel
- Connect the included IEC cable here. Compatible with 120V, 240V, 100V, and anywhere in between. For worldwide operation, use appropriate regional IEC cable (sold separately).
Design
Design Team
Breakthrough Technology
Audio Testing
Design Team
Our power design team has over 25 years of experience in power system design, from developing mission-critical power systems for the aerospace industry, to developing best-in-class power supplies for top-selling power amplifiers, studio monitors, guitar amplifiers, and more. We’re using this vast experience to provide clean, dependable power to all of your effects pedals.
Breakthrough Technology
Strymon has solved the switching power supply problem. With our dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering, we have designed a switching power supply that is actually quieter than linear units.
Audio Testing
To make sure your pedalboard delivers the best sound quality possible when powered by Zuma, we did extensive listening tests with every pedal we could get our hands on, and we audio test each and every unit in our lab. In fact, every Zuma power supply unit goes through the same rigorous Audio Precision testing that our pedals go through. With Zuma, your pedals will sound the way they were designed to sound.
Specs
Ins & Outs
Technology
Construction
Ins & Outs
- 9 high-current, fully isolated outputs
- 9 outputs offer 9V DC option
- 500mA per 9V DC output powers nearly any pedal
- 2 selectable outputs offer 9V, 12V, or 18V DC options
- 12V option provides 375mA, 18V provides 250mA
- Delivers a maximum of 48W
- 9 pedal cables included (5.5mm x 2.1mm barrel connectors, center negative, right angle to straight cables)
- Detachable IEC power cable included
- 24V OUT jack allows connection to additional outputs via Strymon Ojai or Ojai R30 (sold separately)
Technology
- Nine individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility insures no-hassle international touring
- Energy efficient, compact design
Construction
- Lightweight and rugged anodized midnight blue aluminum chassis
- Fits under most pedalboards
- PedalTrain mounting bracket available soon (sold separately)
- Designed and built in the USA
Frequently Asked Questions
Dimensions
Linking
Mounting
Dimensions
What are the dimensions and weight of Zuma?
Zuma dimensions: 6.8″ x 3.3″ x 1.8” (173mm x 84mm x 46mm)
Zuma weight: 1.25 lbs. (680g)
Linking
How many Ojai or Ojai R30 units can be linked to Zuma?
You can link as many as 6 Ojai units to your Zuma, powering up to 39 effects pedals. While it’s unlikely that anyone would go to such extremes, we wanted to ensure Zuma delivers maximum flexibility and expandability. A much more likely scenario would be to link 1 or 2 Ojai units to your Zuma, powering a combination of up to 19 high and low current draw pedals.
Mounting
What Pedaltrain mounting options will be available for Zuma
As Zuma is lightweight at 1.25 lbs, you can use Dual Lock® to mount underneath your pedalboards.
We also offer the Zuma Mounting Kit, which consists of two aluminum brackets that can be used to mount Zuma underneath your Pedaltrain.
